This is a small pictured documentation and resource about how I modified my 2005 PowerMac G5.

This was a little project during my school time. I wanted to keep the main aspects of the aluminum case and its functionalities (like the power button, drive cage, DVD drive) but convert it to a mATX tray. That way it could hold a motherboard including an AiO watercooling solution.

These pictures may or may not be ordered by the time they were taken, but they resemble each step pretty good.

G5

Case aquired

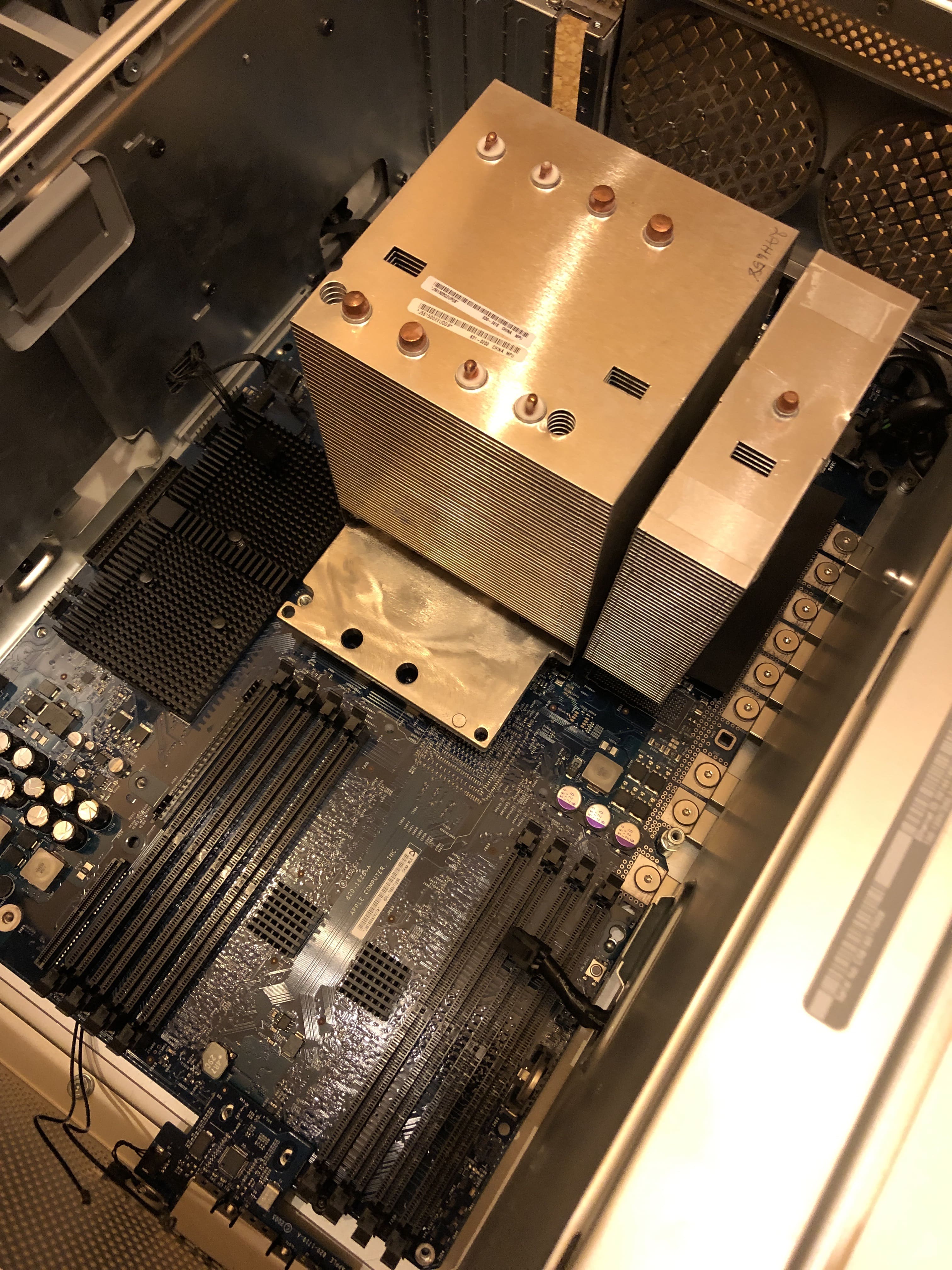

PowerCPU block

Big chungus power

Tried to reach screws with a pen

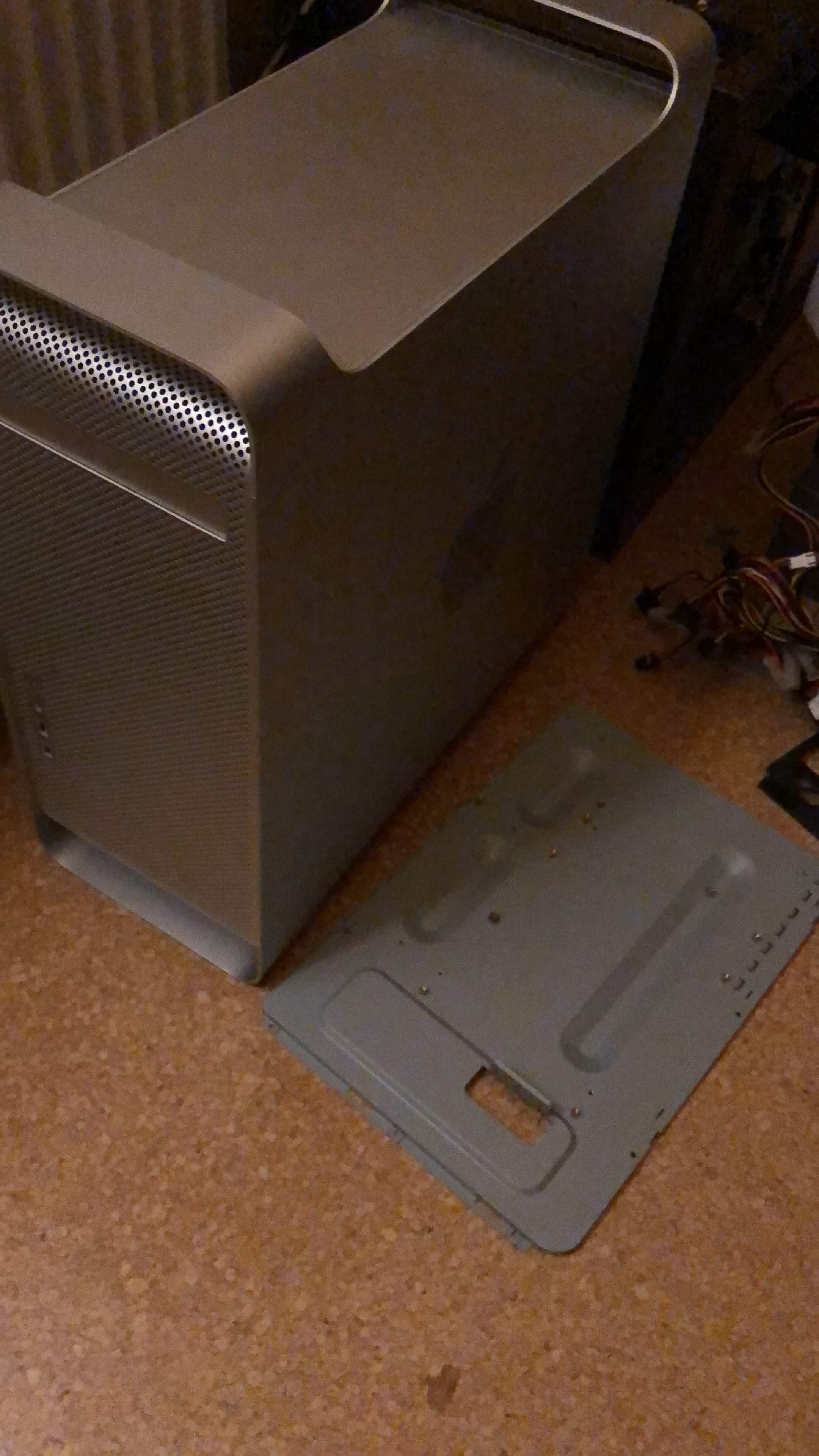

Case next to its first mATX tray

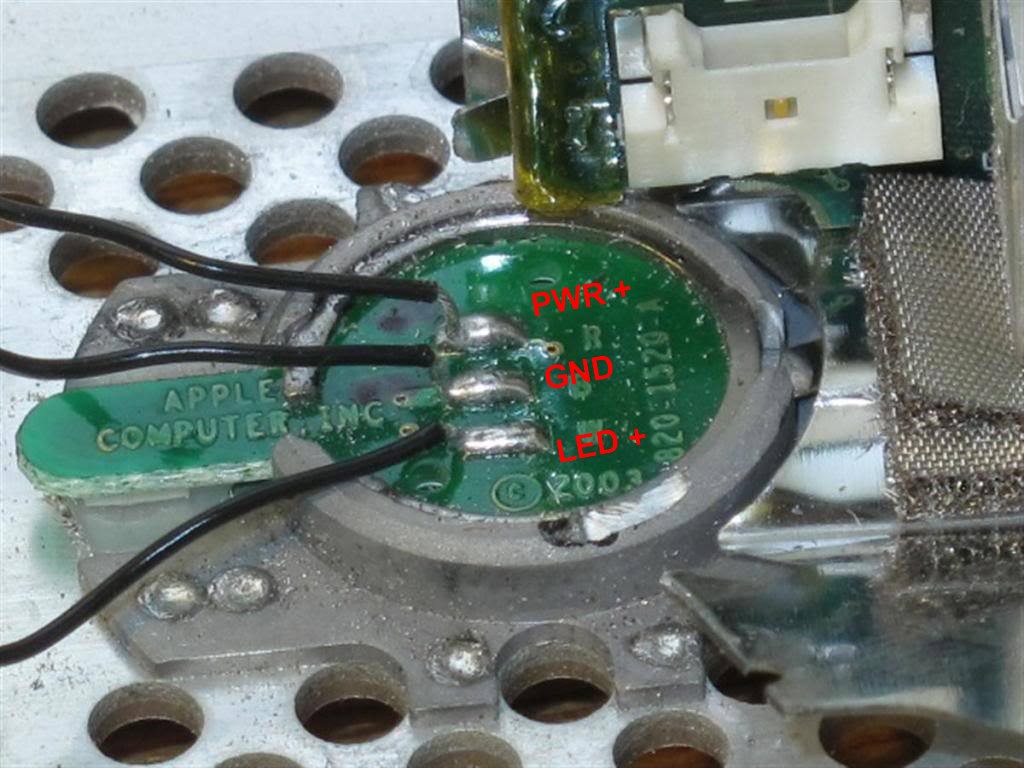

Pinout of the powerbutton daughterboard

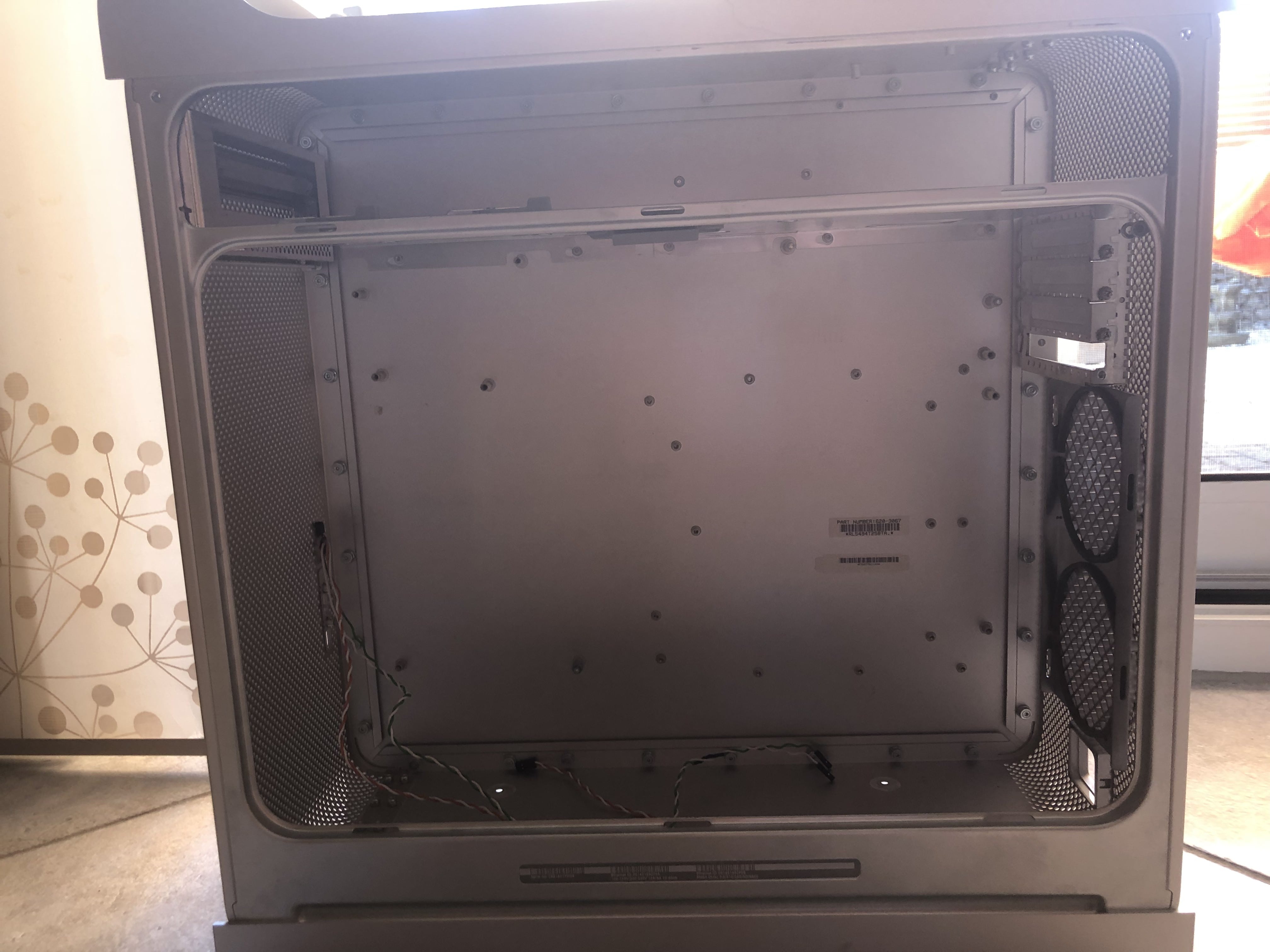

Empty case

Soldered cables to the powerbutton

Second mATX tray was not high enough

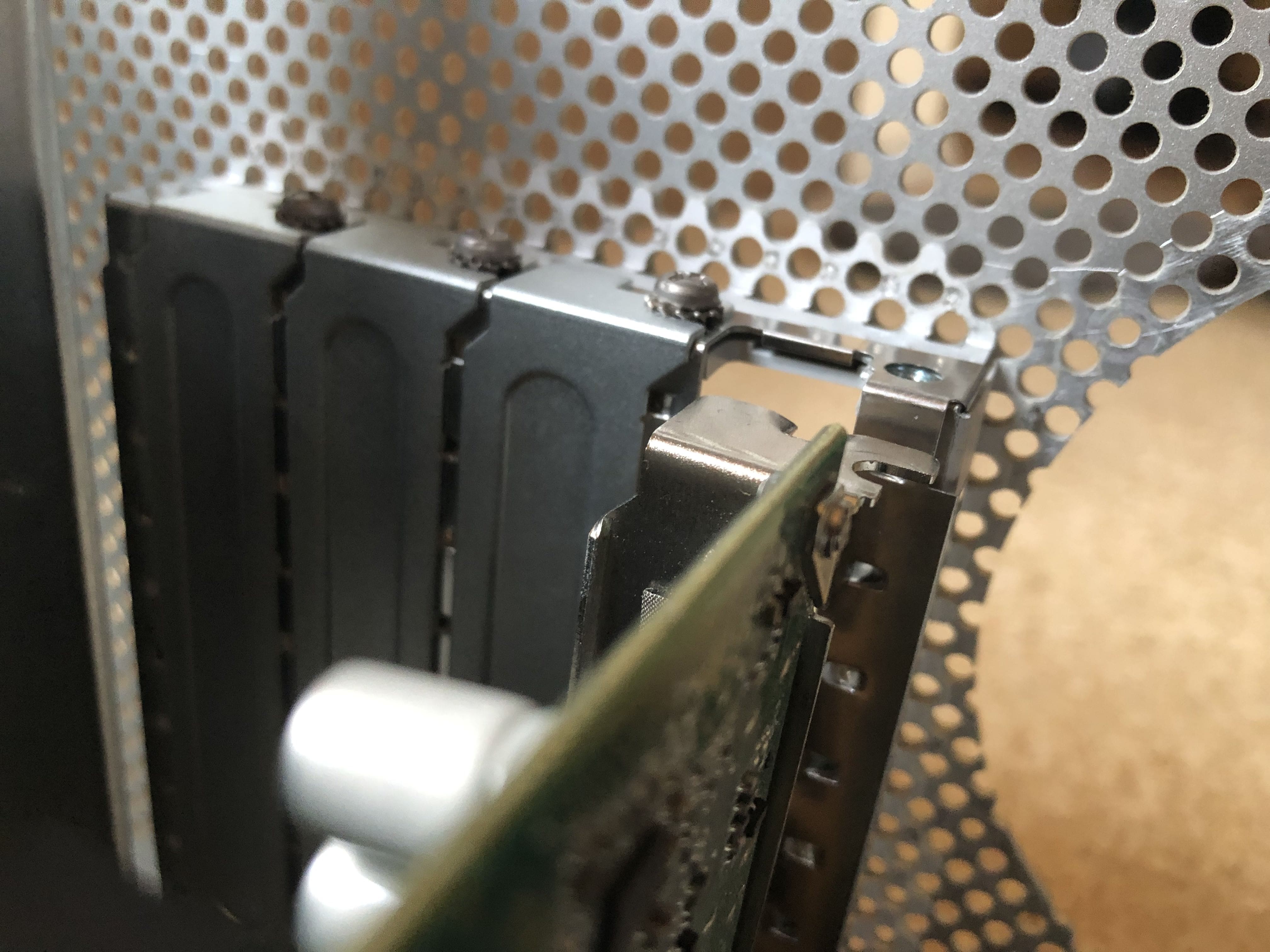

PCIe cannot be screwed in, not high enough

mATX tray raised, cards fit in the slot now

Demonstration of PCIe card in slot

Reusing the old front IO panel

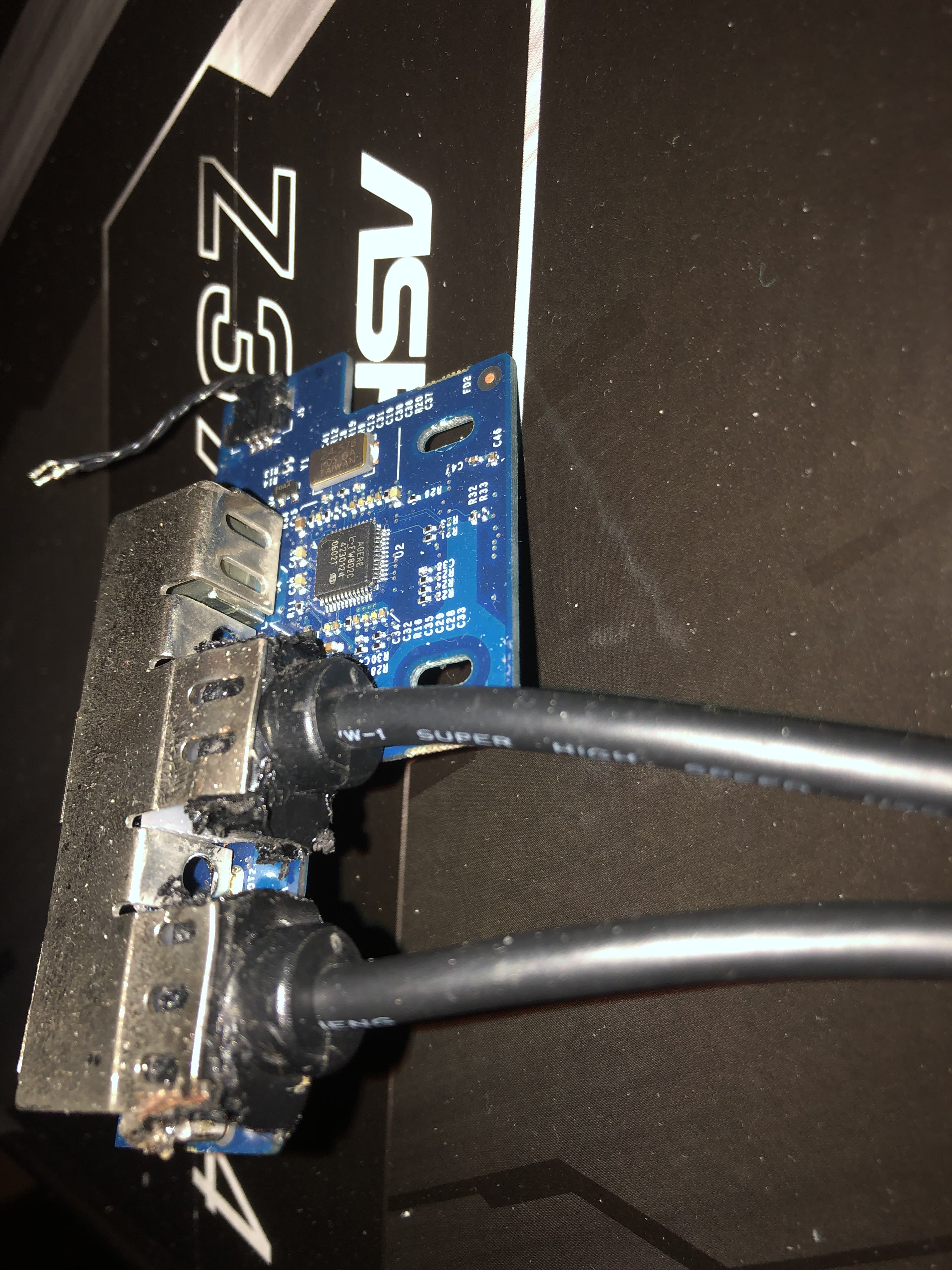

USB 3.0 cable from amazon fused together with board

Power cable can be routed through top compartment

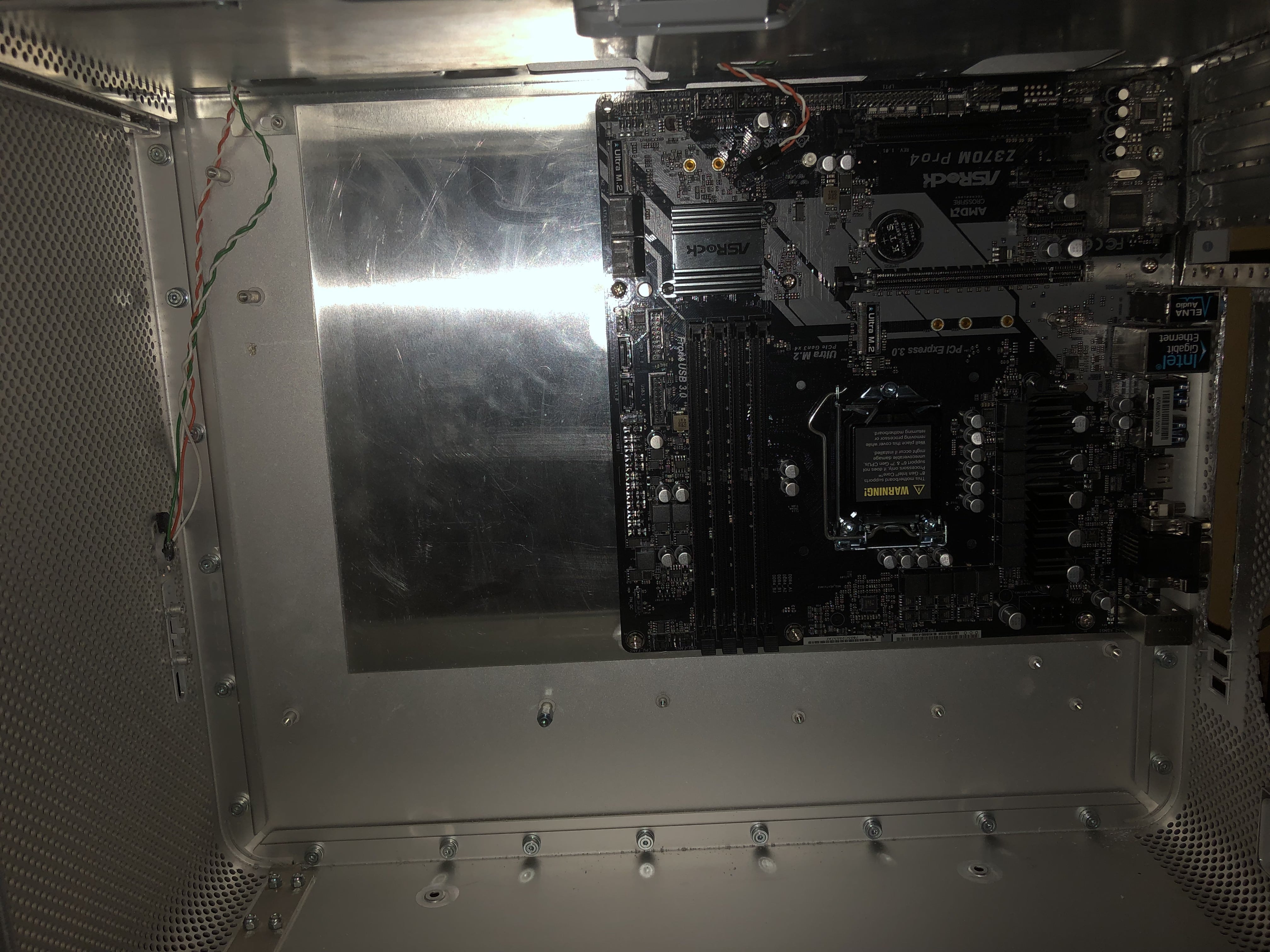

System is in, plexiglass cover does not fit anymore

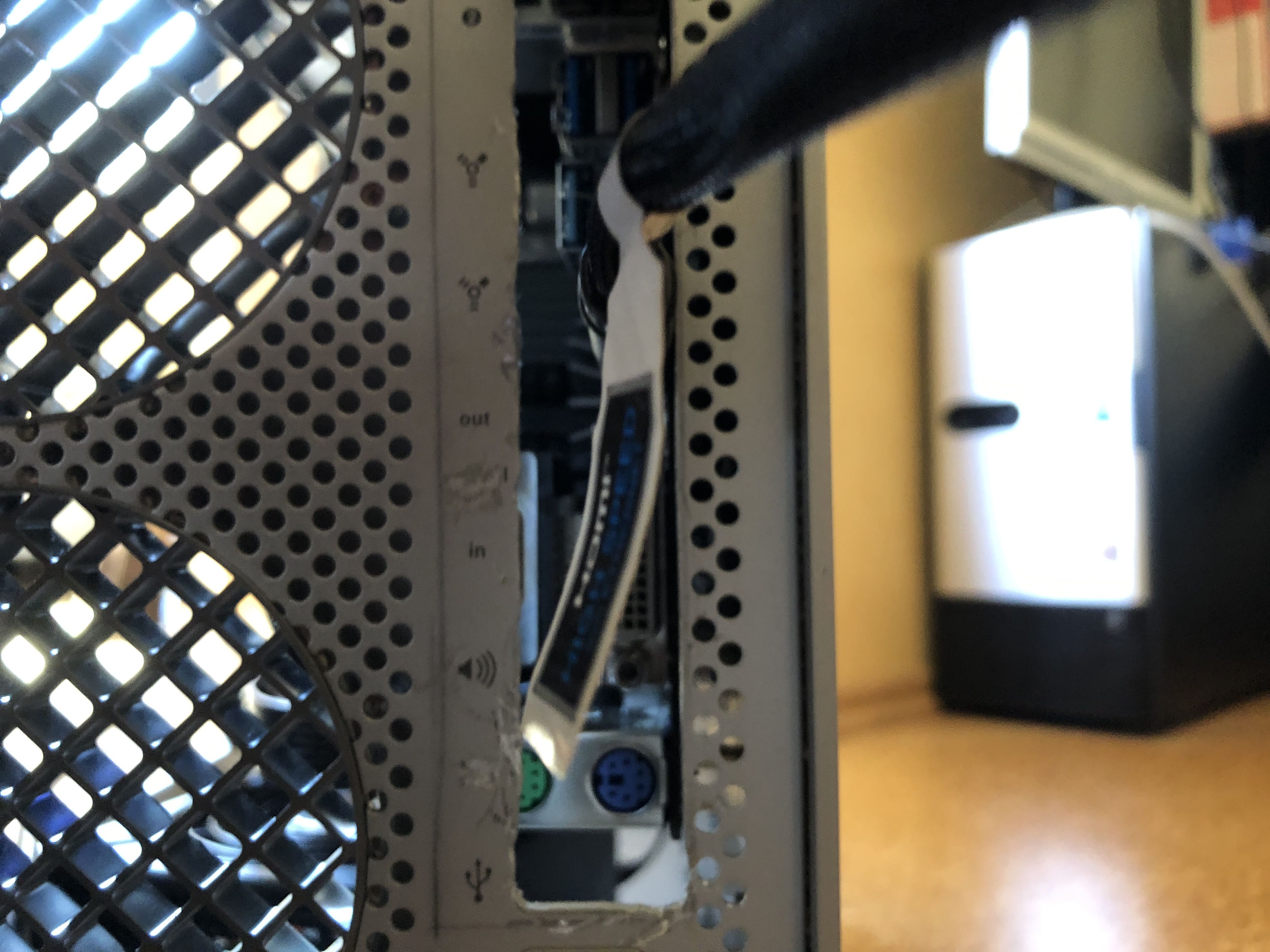

Cut a hole in the old back IO, tight space

Used a big angle to mount radiator

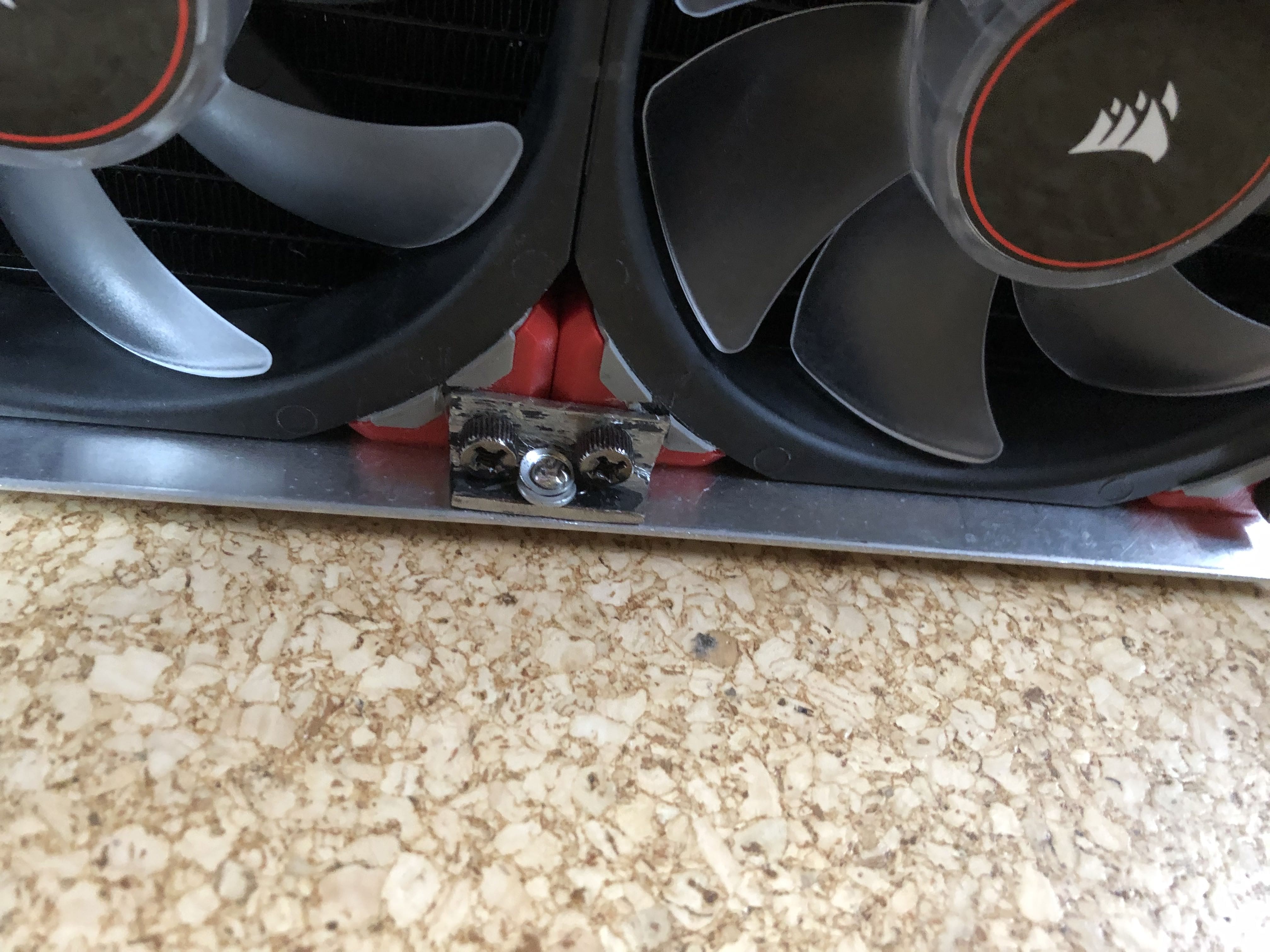

Smaller angle on front, to secure position of radiator

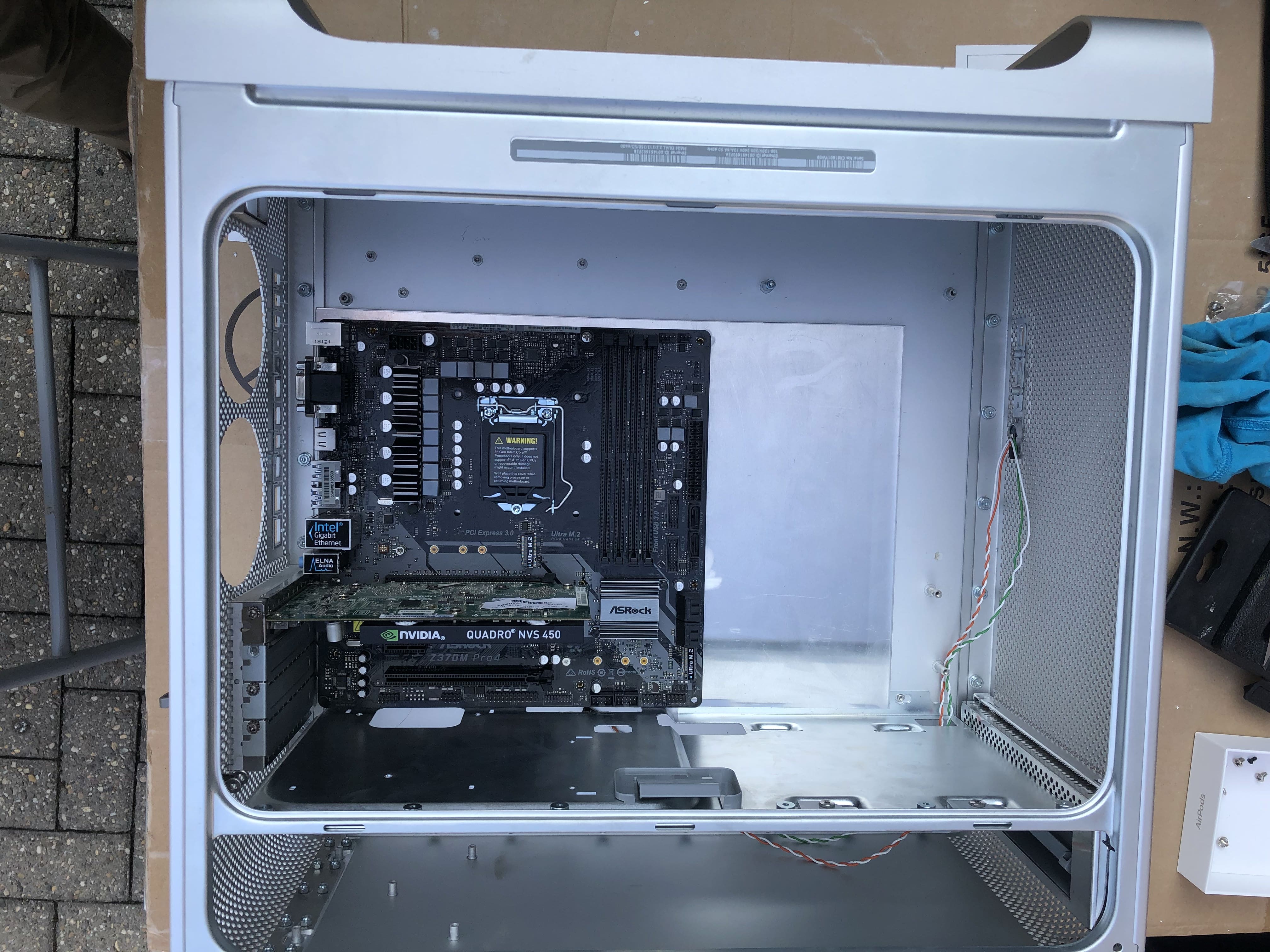

GPU testfitted, barely fits

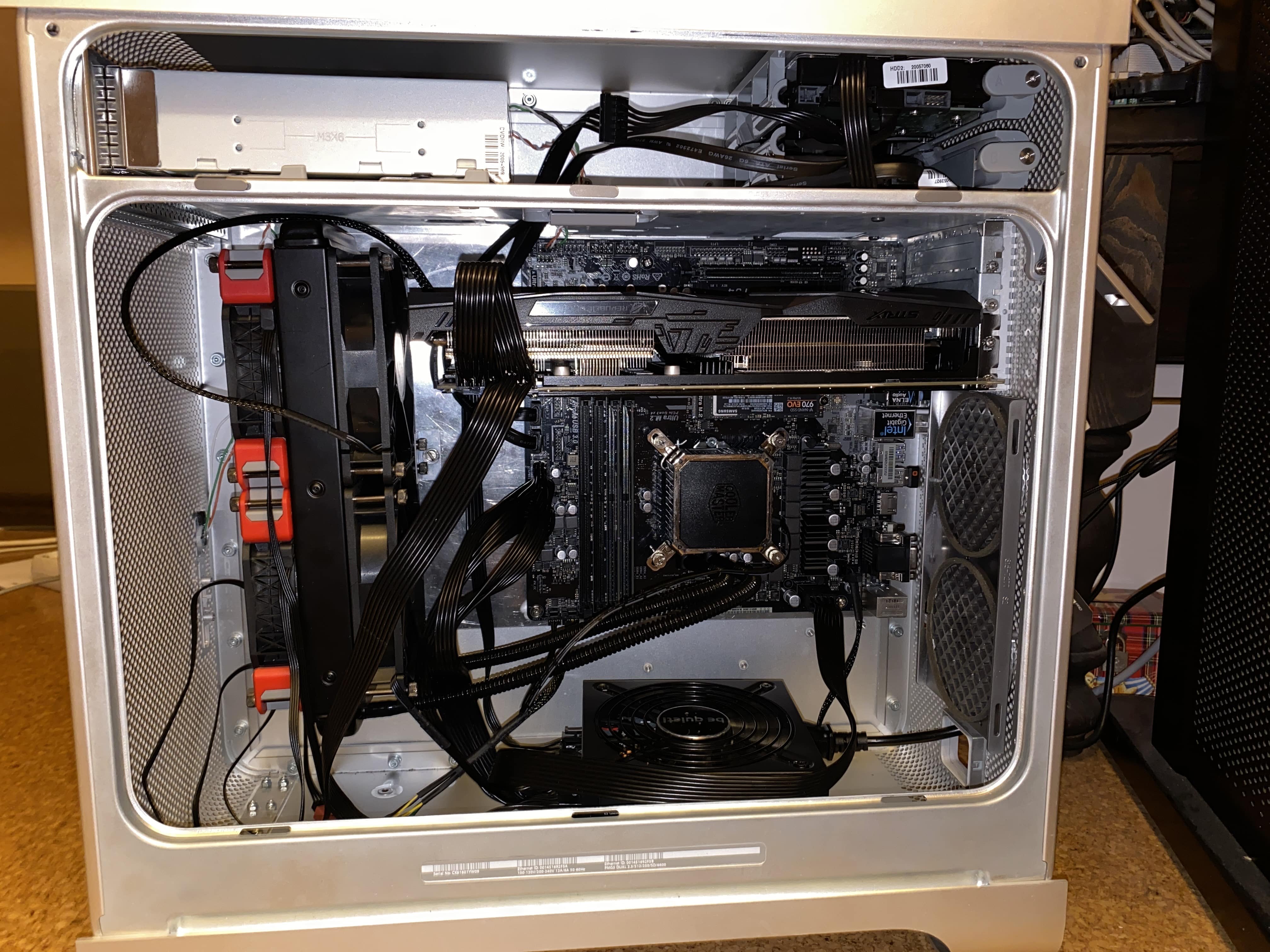

End result, ended up buying the big CPU cover
